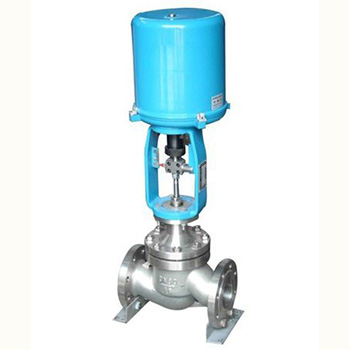

•     ZDLP electric single-seat regulating valve, equipped with 3601L series electronic direct-stroke electric actuator, has the advantages of compact structure, light weight, sensitive action, large valve capacity, accurate flow characteristics, convenient disassembly and assembly, etc. It is widely used to precisely control the process parameters such as pressure, flow, temperature and liquid level of gas, liquid, steam and other media. Keep at a given value. Especially suitable for medium with large pressure difference, large allowable leakage and not very clean.

      This series of products include standard type, bellows sealing type, jacket insulation type and other varieties. The nominal pressure grades of products are PN16, 40, 64; the nominal diameter range DN25-400. The applicable fluid temperature ranges from - 250 C to + 560 C. The leakage standard is grade II or IV. Flow characteristics are linear or equal percentage. Various kinds of products are available. Species and specifications are available.

    Major Parts Materials:

    Body and bonnet: HT200, ZG230-450, ZG1Cr18Ni9Ti
    Valve spool and seat: 1Cr18Ni9Ti, Stellay alloy surfacing
    Filler: PTFE, flexible graphite, stainless steel bellows
    Gasket: Rubber asbestos board, 1cr18Ni9Ti, graphite wound gasket
    Stem and Push: 2Cr13, 1Cr18Ni9Ti
    Bushing：2Cr13


    Main technical parameters:

    公称通径mm 20 25 32 40 50 65 80 100 125 150 200 250 300 400
    阀座通径mm 20 26 32 40 50 66 80 100 125 150 200 250 300
    额定流量系数kv
    		 6.9 11 17.6 27.5 44 69 110 176 275 440 690 1000 1600 2700
    公称压力（MPa） 0.6,1.6， 2.5， 4.0， 6.4
    行程（mm） 10 16 25 40 60 100
    流量特性 直线，等百分比，快开
    工作温度℃ -40～230℃（常温型），散热片式230～450℃（中温型），特殊订货-100～600℃
    法兰尺寸 符合JB78-59、JB79-59标准，可按JB/79.1-94、JB、ANSI、JIS、DIN 等标准订货生产
    阀体材质 WCB（ZG230-450）、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M
    阀芯材质 1Cr18Ni9，SS304，0Cr18Ni12Mo2Ti，SS316，ZG1Cr18Ni9Ti
    阀体型式 直通双座铸造球型阀
    上阀盖型式 普通式（常温），热片式（中温），长颈式（低温）
    阀体允许压差 ≤公称压力 4.0 3.4
    配用电动执行机构型号 PSL PSL-201 PSL-202 PSL-204 PSL-208 PSL-312 PSL325
    361L 361LSA-08 361LSA-20 361LSB-30 361LSB-50 361LSC-65 361LSC-99
    防爆型 361LXA-20 361LXB-30 361LXB-50
